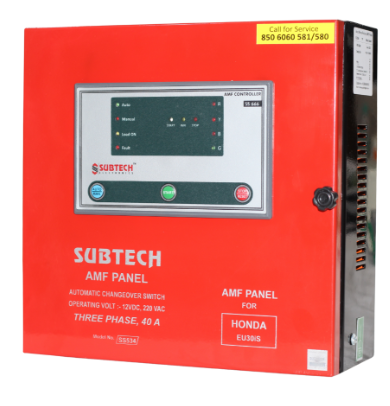

AMF Panel for Honda EU30iS, 40 Amp, Three Phase
Never lose power again: auto-start, auto-stop, zero manual effort.
Get Best Price- Model No.
- SS534
- Compatible Genset
- Honda EU30iS (2.8 kVA rated / 3.0 kVA max)
- Current Rating
- 40 Amp, Three Phase
- Operating Voltage
- 12VDC control · 140–280 VAC (P-N)
Subtech's PMC-based AMF Panel (Model SS534) detects mains failure instantly and auto-starts your Honda EU30iS petrol generator within seconds. When mains power restores, it shuts the genset down automatically: zero manual effort, zero downtime.
What is the AMF Panel for Honda EU30iS?
The Subtech AMF Panel for Honda EU30iS (Model SS534) is a 40 Amp, three-phase Auto Mains Failure panel that automatically starts the Honda EU30iS petrol inverter generator when mains power fails, and switches load back to mains and shuts the genset down when power is restored. It uses Subtech's PMC (Pre Magnetic Contactor) technology for maintenance-free, chatter-free switching, and is compatible with both electronic-controller and older key-start Honda EU30iS units.
Key Specifications at a Glance
Quick reference before you scroll through the full spec sheet
Why Choose AMF Panel for Honda EU30iS, 40 Amp, Three Phase?
What actually matters when you put this on your line
PMC Technology
The contactor coil activates for just 1 second, no chattering, no coil burning, smooth switching at low or high voltages.
Fully Automatic
Auto-starts the Honda EU30iS on mains failure and auto-stops it when mains restores. No manual intervention needed.
Works With Old and New Honda Units
Compatible with both the electronic-controller version and older key-type Honda EU30iS gensets.
Inbuilt Battery Charger
Keeps the Honda EU30iS starter battery topped up and ready, so the genset starts reliably every time mains fails.
3 Cranking Attempts
Retries starting at 15-second intervals if the first attempt doesn't catch, improving real-world start reliability.
Audio-Visual Fault Alarm
Flags genset faults immediately so a failed start doesn't go unnoticed until the next power cut.
Auto / Manual Mode
Runs fully automatic day-to-day, with a manual override and remote operation provision when you need direct control.
Rust-Resistant Enclosure
Powder-coated GI box, wall-mounted, compact, built for Indian site conditions.
Description▾
Built with Subtech's proprietary PMC (Pre Magnetic Contactor) technology, the contactor coil activates for just 1 second, making the panel virtually maintenance-free with no chattering, no coil burning, and smooth switching even at low or high voltages. Rated for 40 Amp, three-phase operation at 12VDC control / 220VAC mains, this panel is purpose-built and tested against the Honda EU30iS (2.8 kVA rated / 3.0 kVA max) inverter generator.
Subtech's PMC-based AMF Panel (Model SS534) detects mains failure instantly and auto-starts your Honda EU30iS petrol generator within seconds. When mains power restores, it shuts the genset down automatically: zero manual effort, zero downtime.
Additional Information▾
- Auto Start and Auto Stop on mains failure and restoration
- Compatible with electronic controller and old key-type Honda EU30iS gensets
- Inbuilt battery charger keeps genset battery always ready
- Audio-visual alarm on genset faults
- Auto and Manual mode with remote operation provision
- 3 cranking attempts at 15 sec intervals for reliable starting
- Powder-coated GI box, wall-mount, compact and rust-resistant
- PMC technology, no chattering, no coil burning, smooth switching
Technical Specifications
| Model No. | SS534 |
| Capacity | 40 Amp |
| Phase | Three Phase |
| Operating Voltage | 12VDC / 220VAC |
| For Generator | Honda EU30iS |
| Enclosure | Powder-coated GI, wall-mount |
| Switching | PMC (Pre Magnetic Contactor) |
Who Should Buy AMF Panel · Honda EU30iS?
This product is ideal for the following users and industries
Industrial Units & Factories
Manufacturing plants needing reliable auto-backup from a petrol generator when mains fail.
Agricultural & Farming
Farms, dairies and poultry needing critical loads to keep running on Honda gensets without manual switching.
Contractors & Builders
Site offices, construction zones and temporary installations needing hands-free backup.
Commercial Establishments
Hotels, hospitals, offices and shops needing uninterrupted operation during power cuts.
Applications & Use Cases
Where you can use AMF Panel · Honda EU30iS effectively
Auto-backup for Honda EU30iS petrol generators
Site offices and remote installations with unreliable mains
Telecom shelters and small commercial outlets
Farm houses and irrigation control rooms
Generator-mains transfer for small and mid-size industries
Frequently Asked Questions
Common questions about AMF Panel · Honda EU30iS
What is the warranty on the AMF Panel for Honda EU30iS?▾
12 months from date of invoice against manufacturing defects, covering all electronic components and the enclosure.
Will this work with any Honda EU30iS?▾
Yes, it's compatible with both the electronic-controller version and older key-type Honda EU30iS gensets.
Can I get a customised version?▾
Yes, current rating, voltage cutoffs and panel size can be customised for bulk orders. Contact our sales team with your requirement.
What is the delivery time?▾
Standard models ship within 3-5 working days. Customised panels take 10-15 working days depending on the BOM.
Is installation support available?▾
Yes. Our service team supports installation through certified electricians across India, plus remote commissioning guidance.
What's the difference between this and the 63A EU70iS panel?▾
This 40A panel is sized and tested for the Honda EU30iS (up to 3.0 kVA). For the larger Honda EU70iS (up to 7.0 kVA), use the 63A PMC AMF panel instead.
Downloads
Technical documentation for this model
Related Products
Related Technical Articles
- What Is a Motor Starter? Function, Types & Working
- AMF vs ATS: What's the Difference?Coming soon
Applicable Standards & Design Considerations
- Honda Power Products Authorised Partner: Subtech has been an authorised automation partner for Honda Power Products in India since 2007, designing and testing panels specifically for the EU30iS and EU65iS/EU70iS petrol inverter generator range.
- IS/IEC 60529: Enclosure ingress protection reference. Subtech's powder-coated GI panel enclosures are built for outdoor/site conditions typical of Indian installations.
