Motor Pump Protection from Power Cut: Stop the Rs 50,000 Annual Drain

Ramesh, a wheat farmer from Karnal, Haryana, woke up at 4 AM to check his fields. Power had returned after a 6-hour cut. He started his 5 HP submersible pump as usual. Within 90 seconds, the winding burned. Rewinding cost: Rs 18,000. It was the second time that season. Across India, from irrigation pumps in Maharashtra sugarcane fields to water boosting pumps in Delhi apartment complexes, the story repeats daily. A sudden power cut, a voltage surge on restoration, and a Rs 15,000 to Rs 50,000 repair bill arrives before sunrise. Motor pump protection from power cut damage is not a luxury. It is the single cheapest investment any motor owner can make.

What Is Motor Pump Protection from Power Cut?

Motor pump protection from power cut refers to a set of electrical safeguards built into your starter panel that automatically disconnect the motor when dangerous electrical conditions arise, and reconnect it only when the supply is safe again. These conditions include: sudden loss of any phase (phase failure), unequal voltage across phases (phase imbalance), dangerously low voltage on restoration (under-voltage), excessive heat build-up (thermal overload), and running a pump with no water in the pipe (dry run).

In India, where voltage at the point of use commonly swings well outside BIS-specified tolerances and where phase-wise restoration after cuts is unpredictable, these protections are not optional. They are the difference between a motor that lasts 8 to 12 years and one that gets rewound every 8 months.

The Technical Reality: What Happens to Your Motor During a Power Cut

The most damaging moment for a motor is not during the power cut itself. It is when power returns.

When electricity comes back after a cut, two events occur almost simultaneously. First, the grid voltage often spikes as substations stabilise, sending a surge that can momentarily exceed rated voltage through your wiring. Second, in three-phase supply areas, phases do not always return together. One phase might come back before the others, creating a condition called single-phasing. In single-phase operation, a three-phase motor tries to draw full load current through only two active phase windings. Winding temperature rises rapidly. In motors above 3 HP, this can destroy a winding in under three minutes.

Additionally, when multiple motors in an area restart simultaneously after a power cut, the in-rush current per motor can be 6 to 8 times its rated full-load current. Without an overload relay calibrated to the motor, this repeated in-rush accelerates insulation degradation year after year.

Types of Motor Pump Protection Panels Available in India

Real-World Rs Impact: The True Cost of Under-Protected Motors

A typical local panel with basic overload relay costs around Rs 3,500 to Rs 5,000. It feels like savings at purchase time. Over three years, the hidden cost picture looks very different.

Consider a 7.5 HP pump running a housing society in Noida, Uttar Pradesh. Without proper motor pump protection from power cut faults, the owner typically faces: two motor rewindings per year at Rs 12,000 each (Rs 24,000 per year), one motor replacement every three years (approximately Rs 28,500), and pump downtime leading to plumber call-outs and resident complaint management costs. Over three years, the total loss reaches approximately Rs 52,500 on top of the panel cost.

A Subtech properly rated panel with full protection features costs approximately Rs 7,000 installed. Total spend over three years: Rs 7,000. The difference is Rs 45,500. A Subtech panel pays for itself in the first avoided motor rewinding.

How Subtech Solves Motor Pump Protection from Power Cut

Subtech Automation Pvt Ltd (S S Power System), Greater Noida, has built its entire pump panel product line around the reality of Indian power supply conditions. The brand principle is simple: Na Motor Jale, Na Starter.

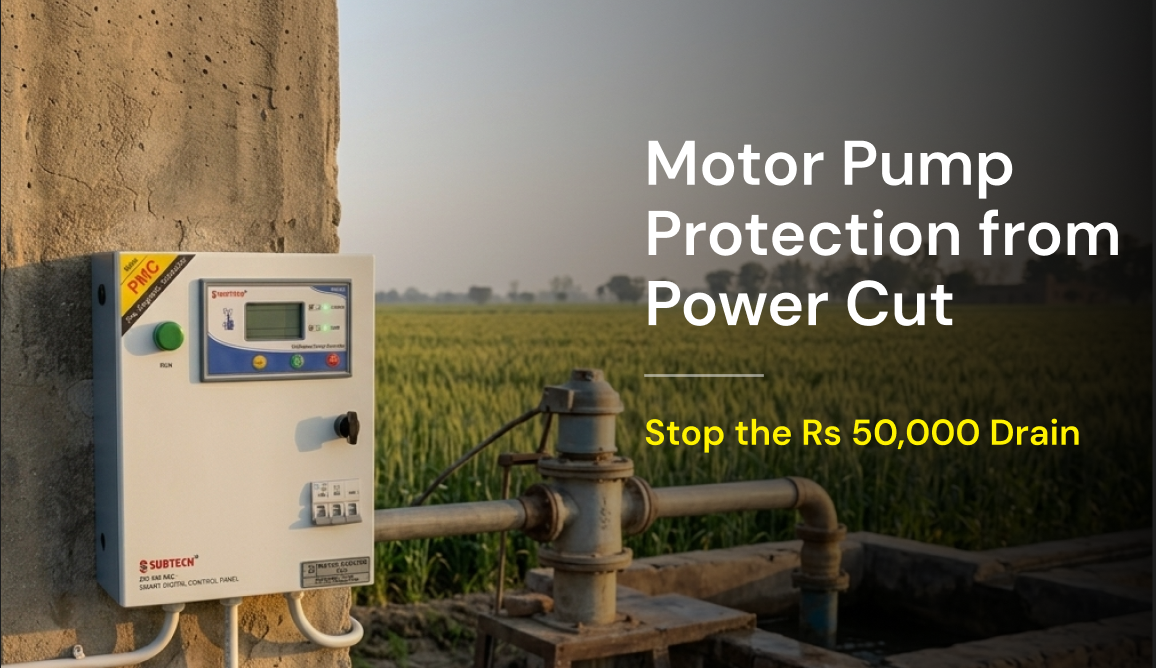

The Subtech PMC (Pump Motor Controller) Panel is designed for continuous outdoor operation across Indian agricultural and commercial sites. It features automatic reconnection with a configurable time delay after power restoration, so your motor does not restart into an unstable supply. The PMC's claimed 50-year lifespan is the result of industrial-grade components rated for Indian ambient temperatures and humidity levels. Protection against single-phase loss, phase reversal, and thermal overload is standard on every PMC.

For locations where only two-phase supply is available, Subtech's Dual-Phase Panel allows motor operation on two-phase input. Note: Safety protections are not active in 2-phase operation mode.

The Subtech Motor Protection Unit (MPU) adds a layer of electronic protection on top of an existing starter. It continuously monitors supply voltage and current in real time, and trips the circuit within milliseconds of detecting a fault. The MPU is compatible with both DOL and Star-Delta starters, making it straightforward to retrofit into existing panels without replacing the entire enclosure.

For higher HP motors in industrial, commercial, or water treatment applications, Subtech's VFD Panels offer soft start capability that eliminates the damaging in-rush current surge on restart after power cuts. The VFD also enables speed control, reducing energy consumption by approximately 30 to 50 percent in variable load applications, as per internal testing. VFD Panels are compatible with the Subtech Command Center remote monitoring platform and the Soldier App, giving facility managers real-time visibility into motor performance from any location.

Subtech products are trusted by organisations including GAIL, NTPC, DMRC, Railways, and IITs across India, and hold certifications under ISO 9001, ISO 14001, ISO 45001, ISO 50001, ZED Silver, CPRI, ERTL, CE, and MSME.

How to Choose the Right Motor Pump Protection Panel

Single-phase motors up to 2 HP (home borewell, small agriculture): Starter with a voltage guard and overload relay. Estimated cost: Rs 1,500 to Rs 2,500.

3-phase motors from 3 to 10 HP (borewell, submersible, irrigation, housing society): DOL starter panel with MPU or a full Subtech PMC. Auto restart with configurable time delay is essential for unattended operation. Estimated cost: Rs 4,500 to Rs 9,000.

3-phase motors from 10 to 25 HP (commercial buildings, medium industry, small water treatment): Star-Delta starter with full MPU plus phase-failure relay. Consider a VFD Panel if energy cost reduction is a priority. Estimated cost: Rs 12,000 to Rs 35,000.

Motors above 25 HP (industrial, large water treatment, HVAC): VFD Panel with full protection suite, soft start, and remote monitoring via Command Center or Soldier App integration. Estimated cost: Rs 40,000 and above depending on HP and features.

Always consult a certified electrician for installation. Specifications may vary by model.

Common Mistakes That Lead to Motor Burnout After Power Cuts

Running without single-phase protection is the most expensive mistake Indian three-phase motor owners make. Phase loss after power cut restoration is common and not visible to the eye. The motor hums, draws excess current through remaining windings, and burns silently.

Using an incorrectly rated MCB means an oversized MCB will not trip when the motor draws excess current, defeating the thermal protection entirely. An undersized MCB trips unnecessarily during normal in-rush, causing premature contact wear.

Ignoring earthing masks fault conditions and prevents many electronic protection relays from detecting certain fault types accurately.

Skipping the time-delay restart feature means your motor reconnects immediately on power return, into whatever voltage condition the grid presents at that moment. A 5 to 10 second delay for single-phase motors, and 30 to 60 seconds for three-phase motors, gives the grid time to stabilise before reconnection.

Why Choose Subtech for Motor Pump Protection

Founded in 2010 in Greater Noida, Subtech Automation Pvt Ltd has grown into one of North India's leading manufacturers of motor control and protection panels, with a Rs 22 crore annual turnover and over 220 authorised dealers across India. Every Subtech panel is manufactured in-house under ISO 9001 and ISO 14001 quality systems, tested at CPRI and ERTL, and field-proven in conditions from Rajasthan desert heat to Assam monsoon humidity.

The Subtech Soldier App allows dealers, engineers, and facility managers to log service calls, access technical documentation, and track panel performance in the field, adding after-sales support that local panel assemblers cannot match.

Protect Your Motor Before the Next Power Cut Hits

Power cuts are not going away. Delhi, Bhopal, Hyderabad, and dozens of Indian cities are seeing scheduled and unscheduled outages in early 2026 as infrastructure upgrades create temporary supply gaps. Every time power returns without proper motor pump protection from power cut conditions in place, your motor takes an unprotected hit.

Do not wait for another rewinding bill to act. Contact Subtech Automation today or locate your nearest authorised dealer at subtech.in. Request a free technical consultation and quote for the right panel for your motor rating and application.
